Description

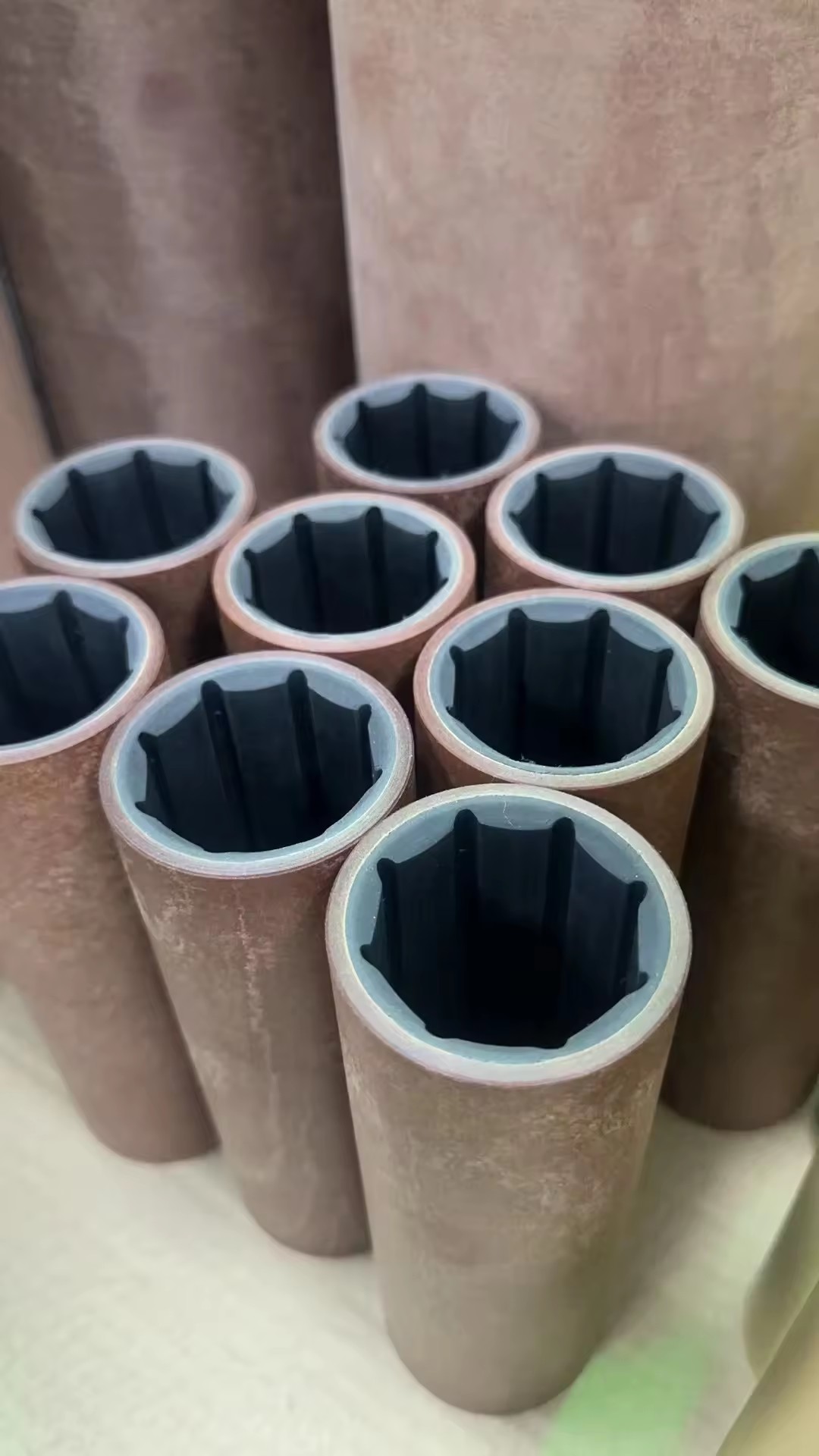

A lightweight paper wound Phenolic resin shell avoids the problem of galvanic corrosion and is suitable for metal stern tubes. These bearings do not possess the structural stability of metals and have a shorter operational life. They swell slightly when immersed in water and are therefore machined to tolerances to accommodate this.

Phenolic bearings are an optimal choice for marine applications because of their exceptional durability and affordability. They are the perfect fit for aluminum boats since they are impervious to corrosion and electrolysis.

Material and Size

Shell Material: Phenolic

Lining Material: Nitrile Liner or polyurethane

Various Type: Lining Type: Straight grooves and Spiral grooves

The metric range covers shaft sizes from 25 mm up to 130 mm in diameter.

The imperial range covers all standard shafts from 3/4″ up to 6 1/2″ in diameter.

Custom sizes available upon request
